3W dimmable LED

Product features

Electrical parameters

LED light source	5050 LED chips (CREE)
Colour	3000K, 4500K, 6000K
Working voltage	DC12V
Assets	3W
Power factor	>0.95
Ra	>80
Beam angle	30
Lumen output	220
Working temperature	-20~60°C
Dimmable	Yes

Specifications

IP rating	Spot IP65
Material	Aluminum
Outer diameter	Ø 36 mm
Diameter hole size	Ø 27 mm
Installation depth	35 mm
Certification	CE, RoHS
Cord length	5 meters per spot
Warranty	3 years

Parameters of the power controller

Input voltage	AC85-265V
Assets	36W
Dimensions	1654125 cm
Remote control type	RF
Number of interfaces	12
Dimmable	Yes
Remote control battery	AAA battery * 2
Max. operating distance	50 meters
IP rating	IP44 (also available with IP67 waterproofing) Material PVC
Material	PVC
Certification	CE, RoHS
Warranty	3 years

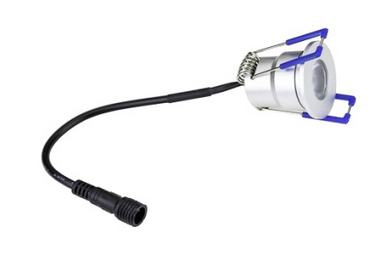

This is a mini dimmable LED spotlight. Using an RF remote control, the spotlight's brightness can be adjusted to suit different scenes and moods.

The remote control's operating distance can reach up to 50 meters , and it uses RF control. Even if there are multiple obstacles near the controller, it won't affect its operation.

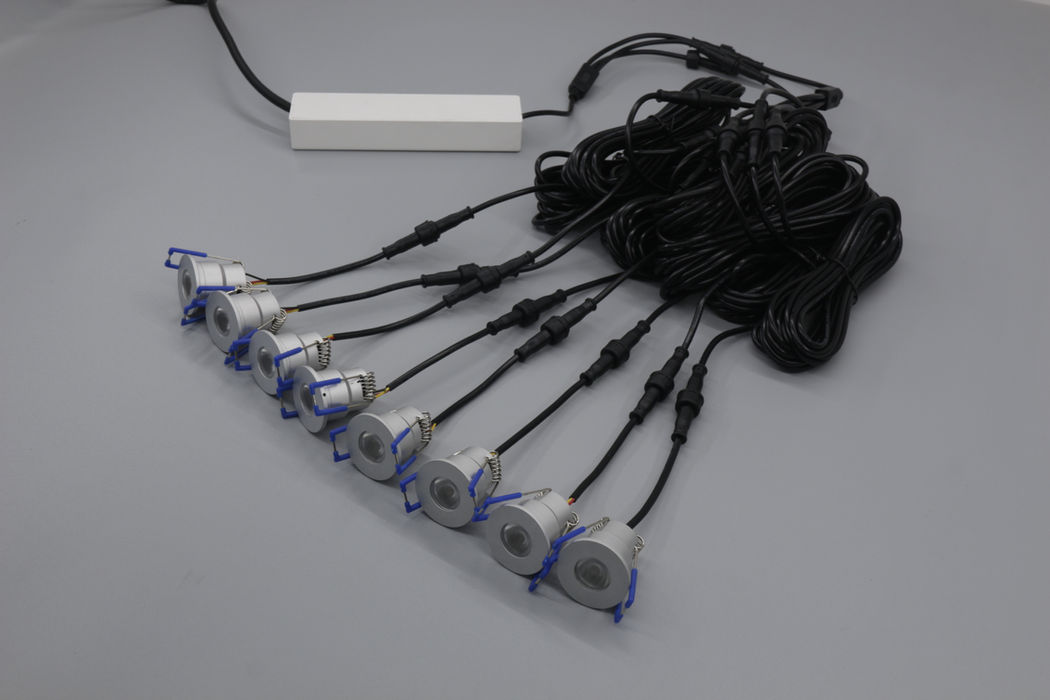

The hub on the power controller can be connected to multiple spotlights for simultaneous control, which is very convenient to use.

Packaging

Applications

This mini spotlight can be easily connected to a dimmable or non-dimmable DC12V transformer. It's also possible to install multiple LED spotlights as a group, easily adding a separate spotlight if needed.

This mini LED downlight is IP65 waterproof, so it's also perfectly suitable for outdoor use. It can also withstand wind and rain.

Frequently Asked Questions about Product

Can I drill holes in 1.22 x 1.22 meter ceiling tiles and install a spotlight without a housing? Is that a fire hazard? I'm using LED spotlights instead of halogen spotlights in the restaurant for 12 hours.

You're welcome to do that. I don't understand why this would cause a fire.

I bought a set of 12 bulbs. How can I adjust the wiring to make the spotlights work?

Plug the connection wires from all the spotlights into the hub port that comes with the controller,

and then turn on the controller plug to turn on the spotlights.

How long is the waterproof cord that comes with the spotlight?

5 meters.

Can I use my own 12V power supply instead of buying your controller?

Of course that is possible.

How do I determine how many lights I need to buy?

You may consider placing a spotlight half a meter or a full meter away.

Do these points have one LED or a group of LEDs?

One LED with a lens to narrow the light beam.

Is this lamp safe for outdoor use? Is there a risk of leakage if exposed to rain?

Don't worry, this can be placed directly on the balcony, or under the eaves, that's no problem.

I want to use these as accent lighting in wooden display cases. I'm not sure if this will cause a fire or if other things are safe.

Will not catch fire.

Are these dimmable?

Yes, we have two models: one monochrome with adjustable brightness; the other two-tone with adjustable brightness and color.

Can I operate the outdoor spotlight from inside the house, or do I have to use the remote control to direct the spotlight?

Of course. This is an RF controller. You can control it from the wall while you're at home.
